(888) 723-0041Diode Dynamics Stage Series SS3 Pro Backlit LED Ditch Light Kit for 2019-2021 Ford Ranger, Yellow Combo/Driving
Part #: DD6586
Diode Dynamics
Description
Diode Dynamics SS3 Pro Yellow Backlit LED Ditch Light Kit for 2019-2021 Ford Ranger delivers Pro-level selective yellow from the larger SS3 pods. High output and a warm, wide beam suit Ranger builds that spend time in snow, sand and dust, where white light bounces back and a yellow wash keeps the trail edges clear and readable. Crisp white with matching punch is DD6585; a lighter Sport yellow pair is DD6584.
Features
- Warm, wide light helps you pick out ruts and drop-offs during slow technical sections
| Amp Draw | 2.7 A main beam, 0.03 A backlight, per pod (at 12.8 V) |
| Backlight | Amber (ABL) |
| Beam Pattern | Combo/Driving, 80° x 30° |
| Bracket | Thick-gauge stainless steel, low profile |
| Color Temperature | 3000K (selective yellow) |
| Compliance | SAE J575 durability test; off-road use |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (with global materials) |
| Driver | Constant current |
| Hood Clearance | Does not interfere with raising or lowering the hood |
| Illuminance | 125 lux at 32.8 ft (10 m), per pod |

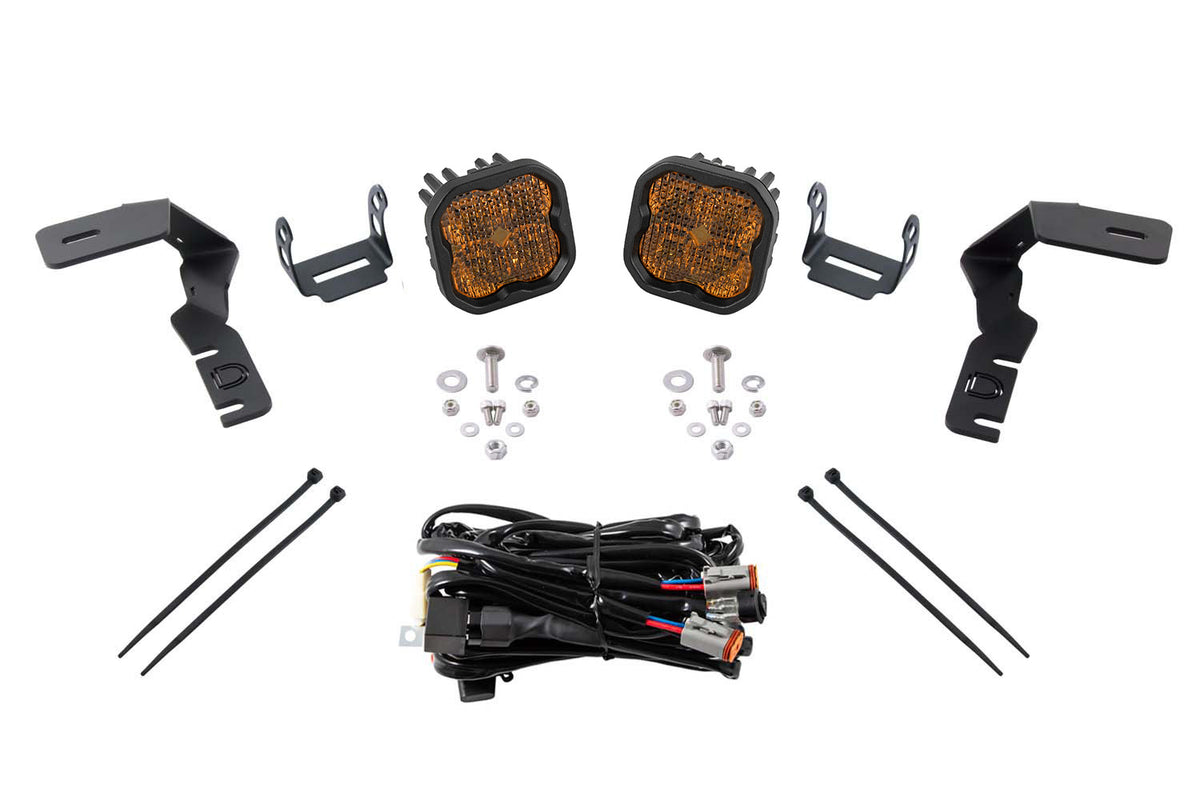

| In the Box | 2 x SS3 Pro Standard pods, 2 A-pillar ditch light brackets, 2 SS3 pod mounting brackets, heavy-duty dual-output 4-pin harness, mounting hardware, mounting guide |
| Input Voltage | 9-16 V DC |
| Installation | Bolts to existing mounting points with factory hardware; no cutting or drilling |
| Intensity | 12,550 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Cree XP-L HI |
| Measured Lumens | 2,700 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 3 in (76 mm) class |
| Polarity | Polarity specific |
| Power Level | Pro |
| Raw Lumens | 5,796 lm per pod |
| Shipping Dimensions | 15 x 9 x 12 in (381 x 229 x 305 mm) |
| Shipping Weight | 8.07 lb (3.66 kg) |
| Warranty | Limited Lifetime |
| Watts | 36 W main beam, 0.4 W backlight, per pod |
| 2019–2023 Ford Ranger |
| Product Condition | NEW |
