(888) 723-0041Diode Dynamics Stage Series C2 2.0 Sport Backlit LED Ditch Light Kit for 2019-2021 Ford Ranger, White Combo/Driving
Part #: DD6587
Diode Dynamics
Description
Diode Dynamics C2 2.0 Sport Backlit LED Ditch Light Kit for 2019-2021 Ford Ranger brings reach-first white lighting to the pillar mounts. Compared with the SS3, the C2 2.0 pod trades some spread for reach, so you see the next bend and anything standing in it sooner. On a midsize truck the compact bodies keep the front end looking tidy. Yellow lovers should pick DD6588; Pro power for this compact pod means DD6589.
Features
- Compact housings keep the pillar area uncluttered and the sightline over the hood open
| Amp Draw | 1.17 A main beam, 0.03 A backlight, per pod (at 12.8 V) |
| Backlight | Amber (ABL) |
| Beam Pattern | Combo/Driving, 55° x 20° |
| Bracket | Thick-gauge stainless steel, low profile |
| Color Temperature | 6000K (white) |
| Compliance | SAE J575 durability test; off-road use |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (with global materials) |
| Driver | Constant current |
| Hood Clearance | Does not interfere with raising or lowering the hood |
| Illuminance | 340 lux at 32.8 ft (10 m), per pod |

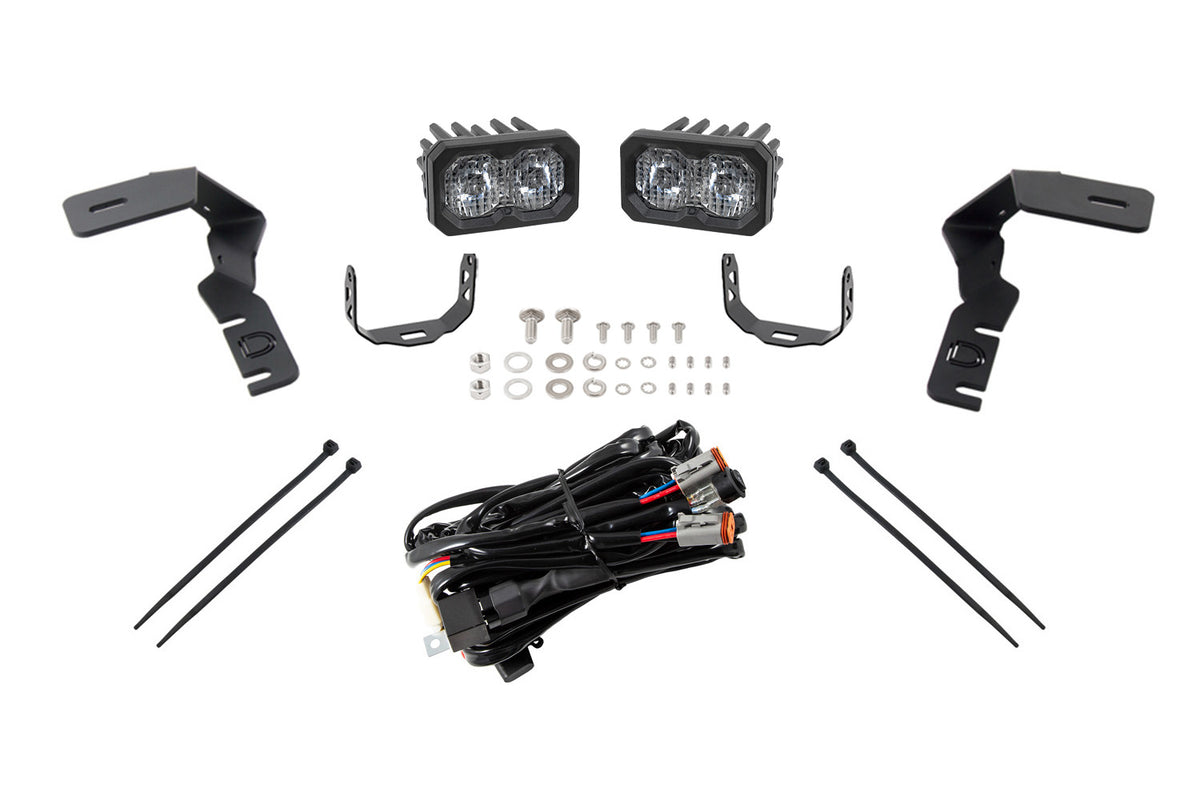

| In the Box | 2 x C2 2.0 Sport Standard pods, 2 A-pillar ditch light brackets, 2 C2 2.0 pod mounting brackets, heavy-duty dual-output 4-pin harness, mounting hardware, mounting guide |
| Input Voltage | 9-30 V DC |
| Installation | Bolts to existing mounting points with factory hardware; no cutting or drilling |
| Intensity | 34,000 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Lumileds automotive grade |
| Measured Lumens | 1,130 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |

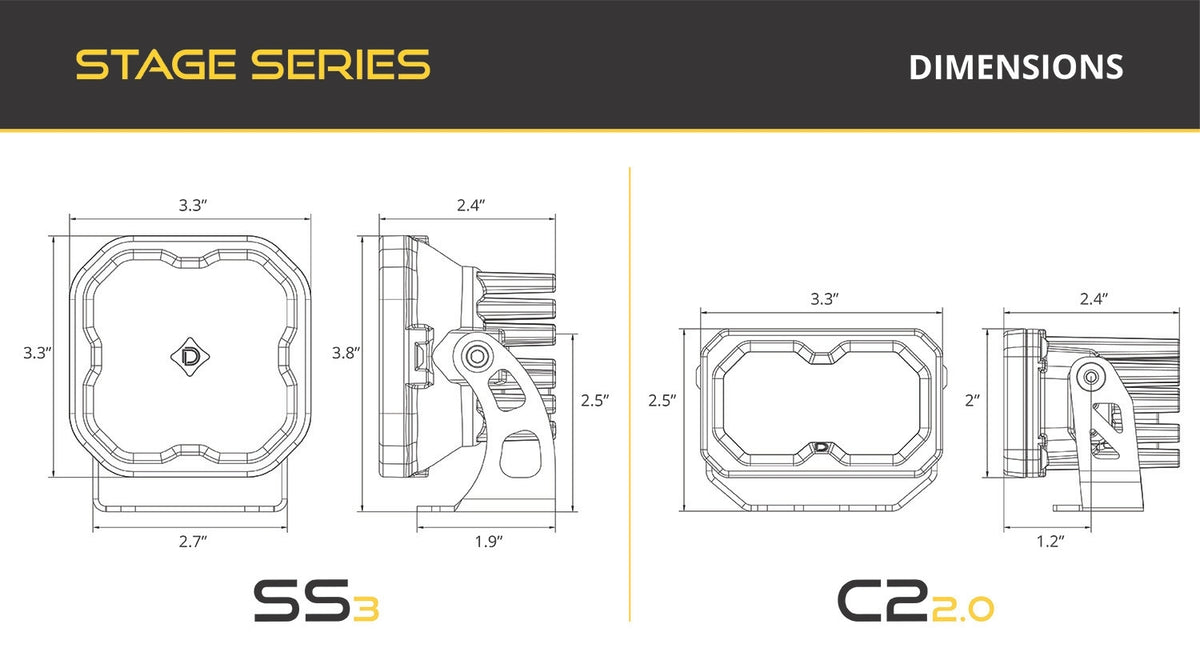

| Pod Size | 2 in (51 mm) class |
| Polarity | Polarity specific |
| Power Level | Sport |
| Raw Lumens | 1,186 lm per pod |
| Shipping Dimensions | 15 x 9 x 12 in (381 x 229 x 305 mm) |
| Shipping Weight | 7.8 lb (3.54 kg) |
| Warranty | Limited Lifetime |
| Watts | 15 W main beam, 0.38 W backlight, per pod |
| 2019–2023 Ford Ranger |
| Product Condition | NEW |
