(888) 723-0041Diode Dynamics Stage Series C2 2.0 Sport Backlit LED Ditch Light Kit for 2019-2021 Ford Ranger, Yellow Combo/Driving
Part #: DD6588
Diode Dynamics
Description
Diode Dynamics C2 2.0 Sport Yellow Backlit LED Ditch Light Kit for 2019-2021 Ford Ranger gives the midsize pickup a pair of discreet amber-gold pods. A warm, reaching beam in a small housing suits Rangers that cover rural highways all week and explore on weekends, cutting through rain and fog without throwing harsh glare back at the driver. White in this housing is DD6587; DD6590 reaches farther with Pro yellow output.
Features
- Low-key size and yellow tone give the truck a subtle rally-inspired look
| Amp Draw | 1.17 A main beam, 0.03 A backlight, per pod (at 12.8 V) |
| Backlight | Amber (ABL) |
| Beam Pattern | Combo/Driving, 55° x 20° |
| Bracket | Thick-gauge stainless steel, low profile |
| Color Temperature | 3000K (selective yellow) |
| Compliance | SAE J575 durability test; off-road use |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (with global materials) |
| Driver | Constant current |
| Hood Clearance | Does not interfere with raising or lowering the hood |
| Illuminance | 340 lux at 32.8 ft (10 m), per pod |

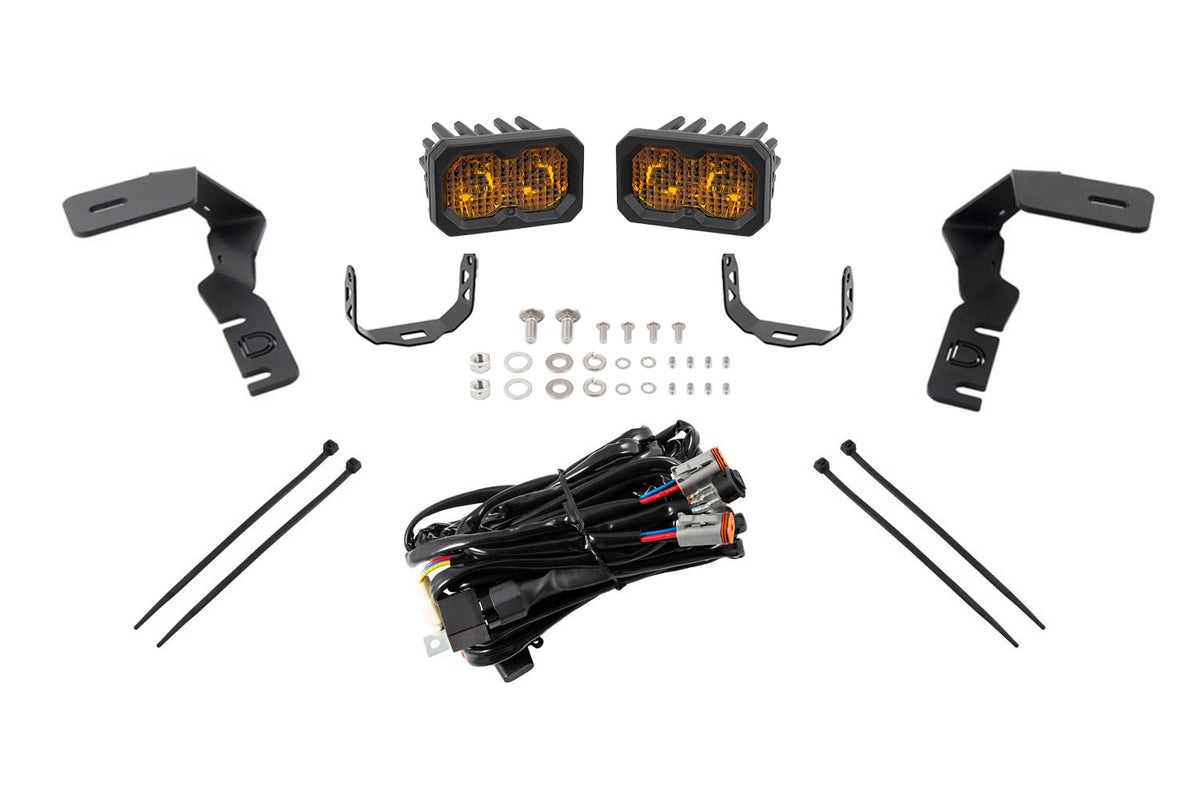

| In the Box | 2 x C2 2.0 Sport Standard pods, 2 A-pillar ditch light brackets, 2 C2 2.0 pod mounting brackets, heavy-duty dual-output 4-pin harness, mounting hardware, mounting guide |
| Input Voltage | 9-30 V DC |
| Installation | Bolts to existing mounting points with factory hardware; no cutting or drilling |
| Intensity | 34,000 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Lumileds automotive grade |
| Measured Lumens | 777 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 2 in (51 mm) class |
| Polarity | Polarity specific |
| Power Level | Sport |
| Raw Lumens | 1,186 lm per pod |
| Shipping Dimensions | 15 x 9 x 12 in (381 x 229 x 305 mm) |
| Shipping Weight | 7.8 lb (3.54 kg) |
| Warranty | Limited Lifetime |
| Watts | 15 W main beam, 0.38 W backlight, per pod |
| 2019–2023 Ford Ranger |
| Product Condition | NEW |
