(888) 723-0041Diode Dynamics Stage Series C2 2.0 Pro Backlit LED Ditch Light Kit for 2019-2021 Ford Ranger, White Combo/Driving
Part #: DD6589
Diode Dynamics
Description
Diode Dynamics C2 2.0 Pro Backlit LED Ditch Light Kit for 2019-2021 Ford Ranger gives the Ranger compact Pro-level pods with real reach. Pro power in the C2 2.0 makes a small pod punch well above its size, lighting up far-off corners and wildlife at the roadside. It suits Ranger owners who want reach from the ditch lights instead of a bulky roof bar. Choose DD6590 for yellow, or DD6587 for the Sport white kit.
Features
- Strong reach without the height of a roof-mounted bar, so garage clearance stays the same
| Amp Draw | 1.8 A main beam, 0.03 A backlight, per pod (at 12.8 V) |
| Backlight | Amber (ABL) |
| Beam Pattern | Combo/Driving, 55° x 20° |
| Bracket | Thick-gauge stainless steel, low profile |
| Color Temperature | 6000K (white) |
| Compliance | SAE J575 durability test; off-road use |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (with global materials) |
| Driver | Constant current |
| Hood Clearance | Does not interfere with raising or lowering the hood |
| Illuminance | 545 lux at 32.8 ft (10 m), per pod |

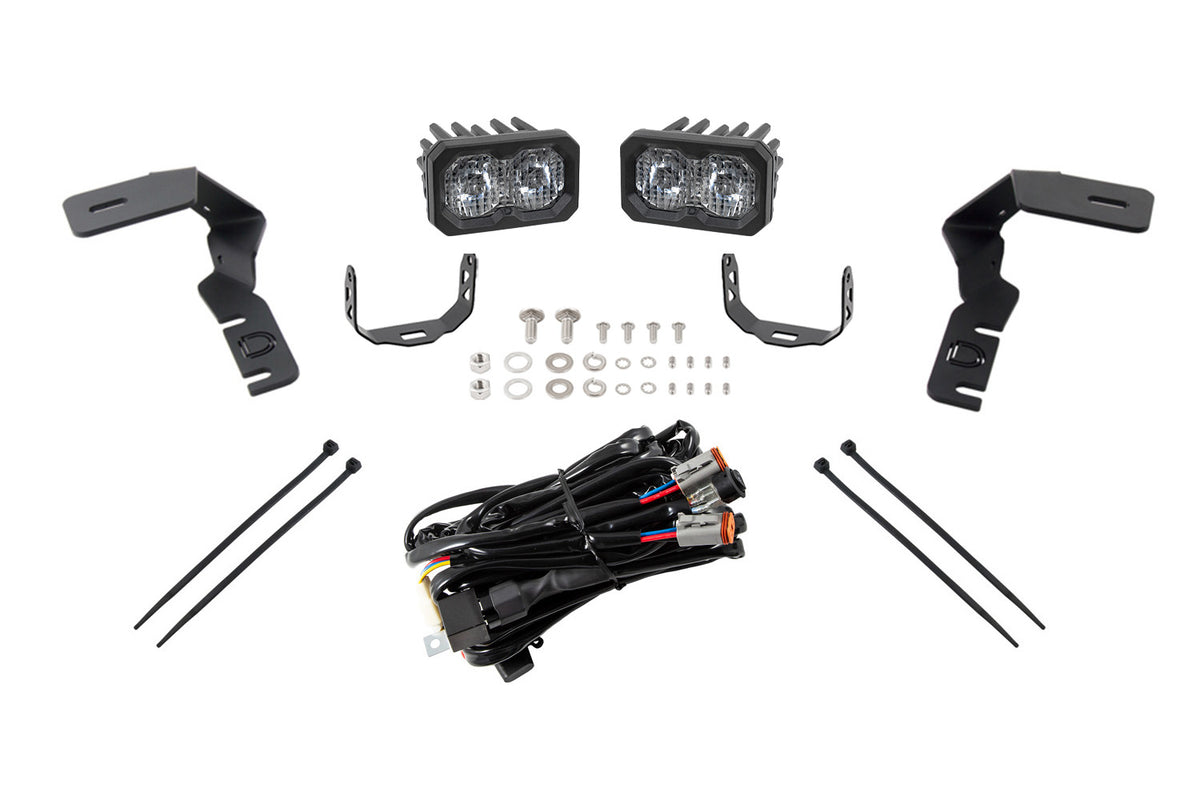

| In the Box | 2 x C2 2.0 Pro Standard pods, 2 A-pillar ditch light brackets, 2 C2 2.0 pod mounting brackets, heavy-duty dual-output 4-pin harness, mounting hardware, mounting guide |
| Input Voltage | 9-30 V DC |
| Installation | Bolts to existing mounting points with factory hardware; no cutting or drilling |
| Intensity | 54,500 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Osram Ostar Projection Compact |
| Measured Lumens | 1,988 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |

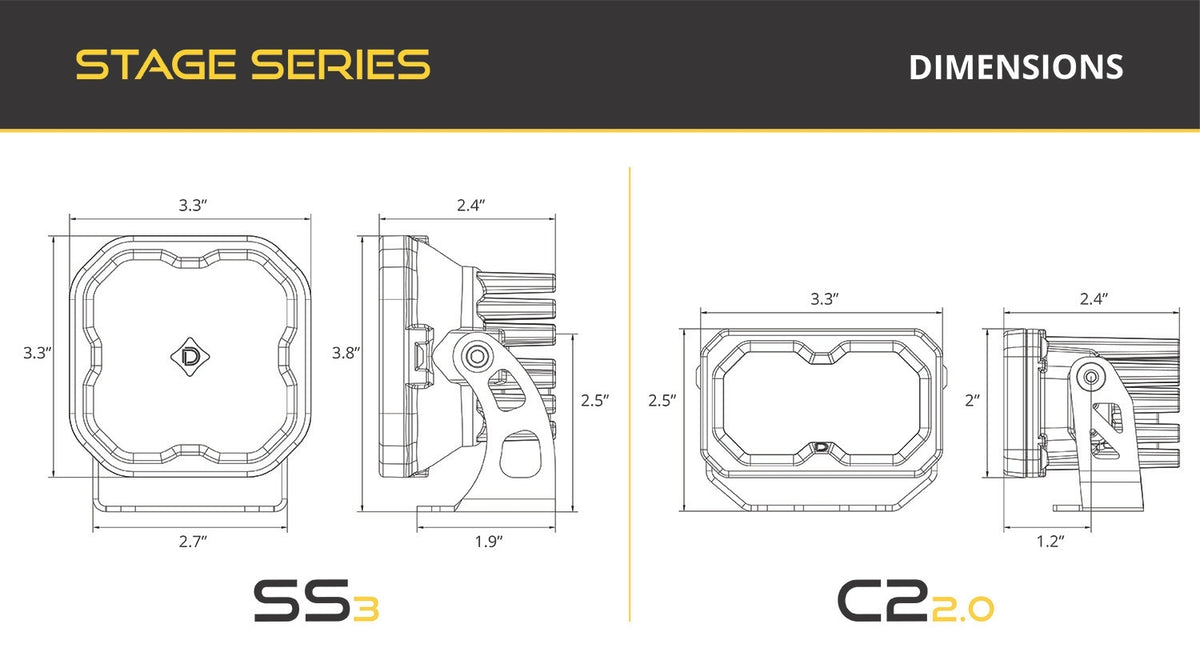

| Pod Size | 2 in (51 mm) class |
| Polarity | Polarity specific |
| Power Level | Pro |
| Raw Lumens | 3,136 lm per pod |
| Shipping Dimensions | 15 x 9 x 12 in (381 x 229 x 305 mm) |
| Shipping Weight | 7.8 lb (3.54 kg) |
| Warranty | Limited Lifetime |
| Watts | 23 W main beam, 0.38 W backlight, per pod |
| 2019–2023 Ford Ranger |
| Product Condition | NEW |
