(888) 723-0041Diode Dynamics Stage Series SS3 Pro Backlit LED Ditch Light Kit for 2021-2023 Ford Bronco, Yellow Combo/Driving
Part #: DD7187
Diode Dynamics
Description
Diode Dynamics SS3 Pro Yellow Backlit LED Ditch Light Kit for 2021-2023 Ford Bronco turns up the warmth and the output on Bronco trail nights. When the trail fills with dust from the rigs ahead, a Pro yellow beam keeps working where white washes out, lighting the berm and the line beside you with a warm, wide spread. It suits Bronco owners who run in groups and in bad weather. White at this output is DD7186, and the Sport yellow pods are DD7185.
Features
- A go-to setup for convoy trail rides where the air stays thick with dust
| Amp Draw | 2.7 A main beam, 0.03 A backlight, per pod (at 12.8 V) |
| Backlight | Amber (ABL) |
| Beam Pattern | Combo/Driving, 80° x 30° |
| Bracket | Thick-gauge stainless steel, low profile |
| Color Temperature | 3000K (selective yellow) |
| Compliance | SAE J575 durability test; off-road use |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (with global materials) |
| Driver | Constant current |

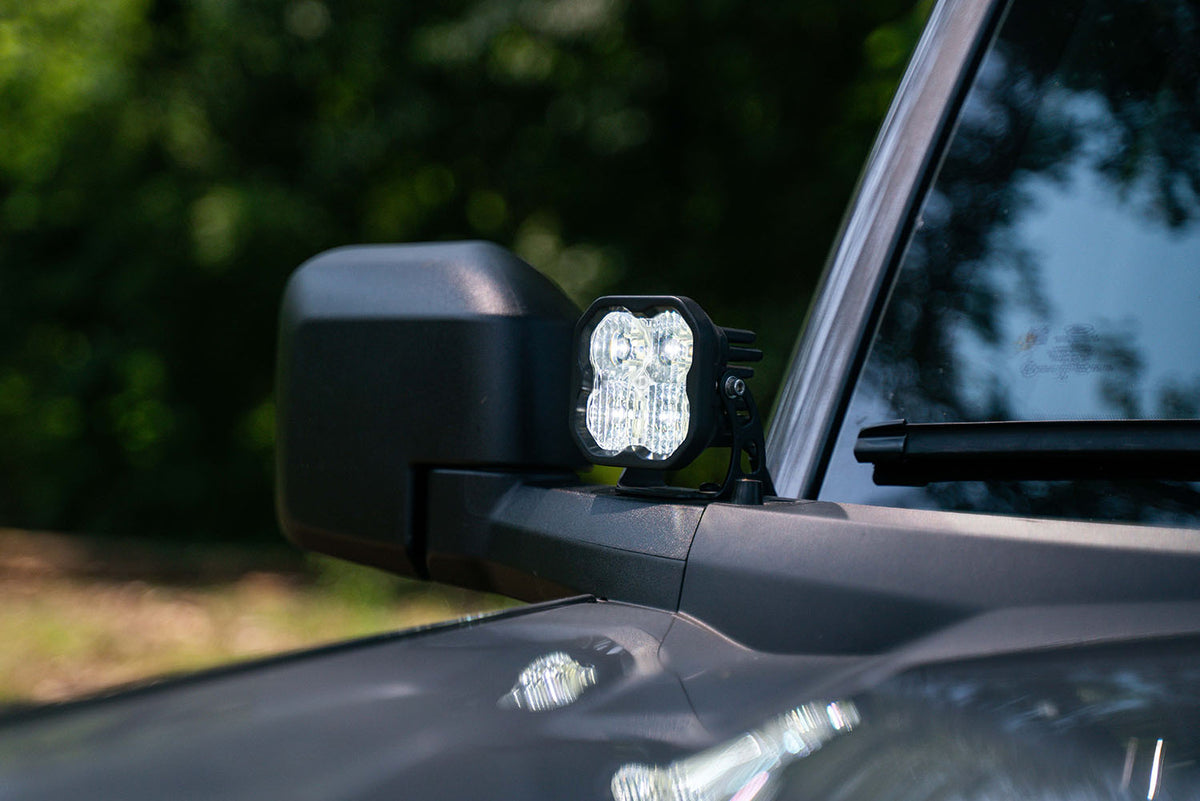

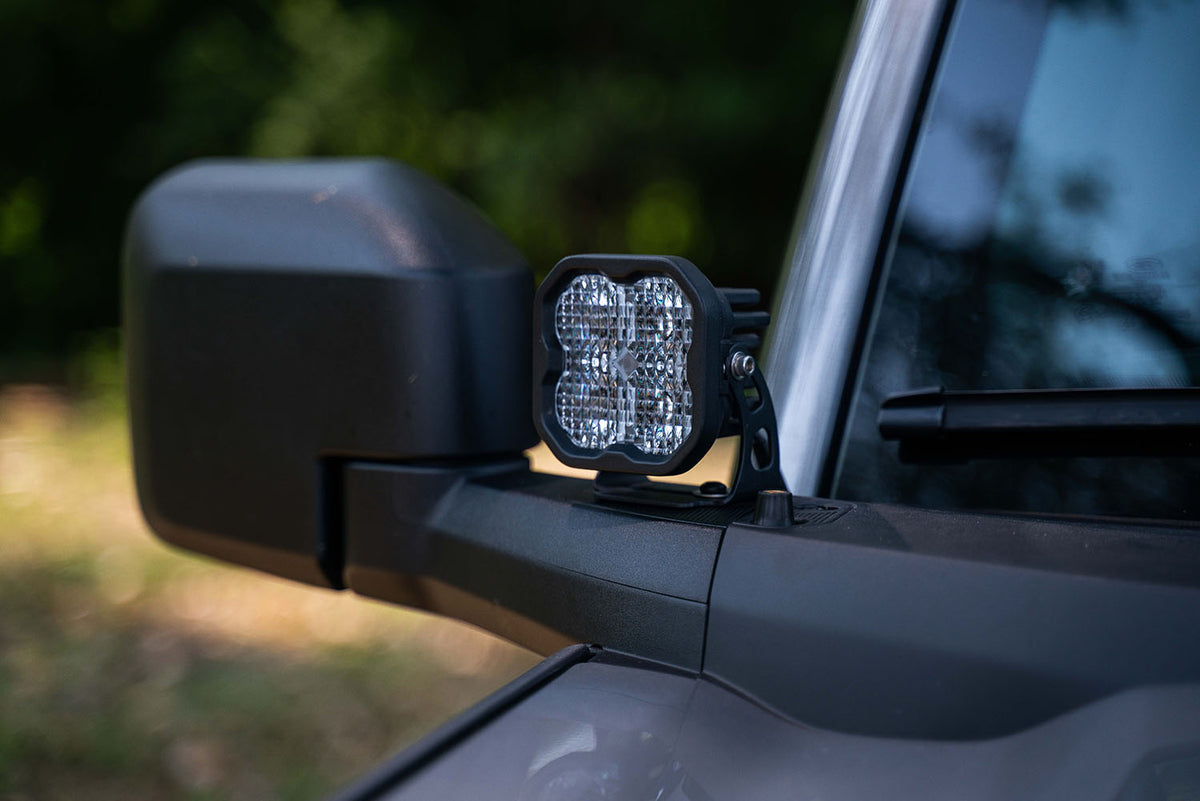

| Hood Clearance | Does not interfere with raising or lowering the hood |
| Illuminance | 125 lux at 32.8 ft (10 m), per pod |

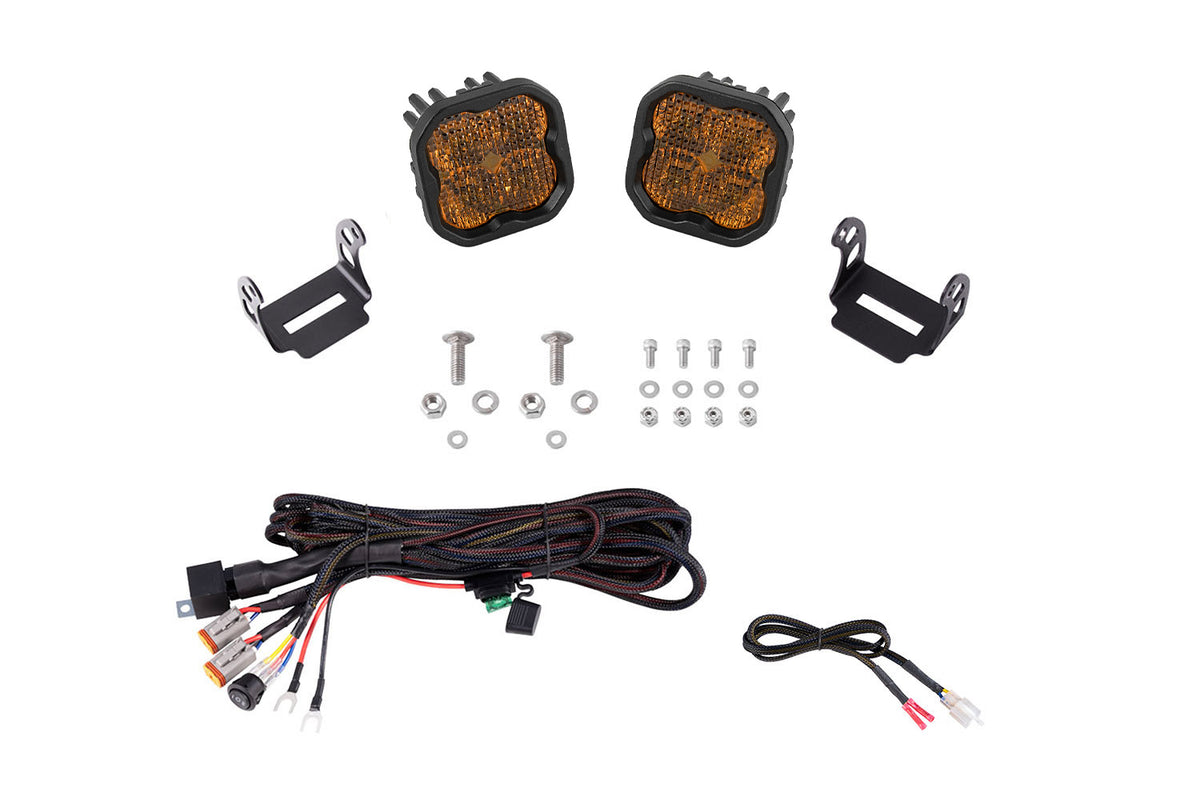

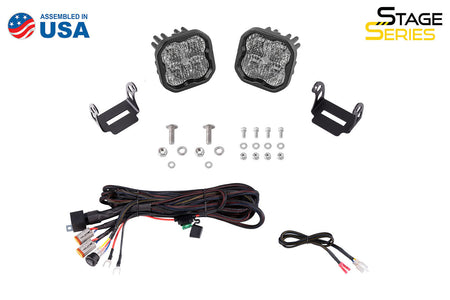

| In the Box | 2 x SS3 Pro Standard pods, heavy-duty dual-output 4-pin harness, 2 mounting brackets, mounting hardware |
| Input Voltage | 9-16 V DC |
| Installation | Bolts to existing mounting points with factory hardware; no cutting or drilling |
| Intensity | 12,550 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Cree XP-L HI |
| Measured Lumens | 2,700 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |

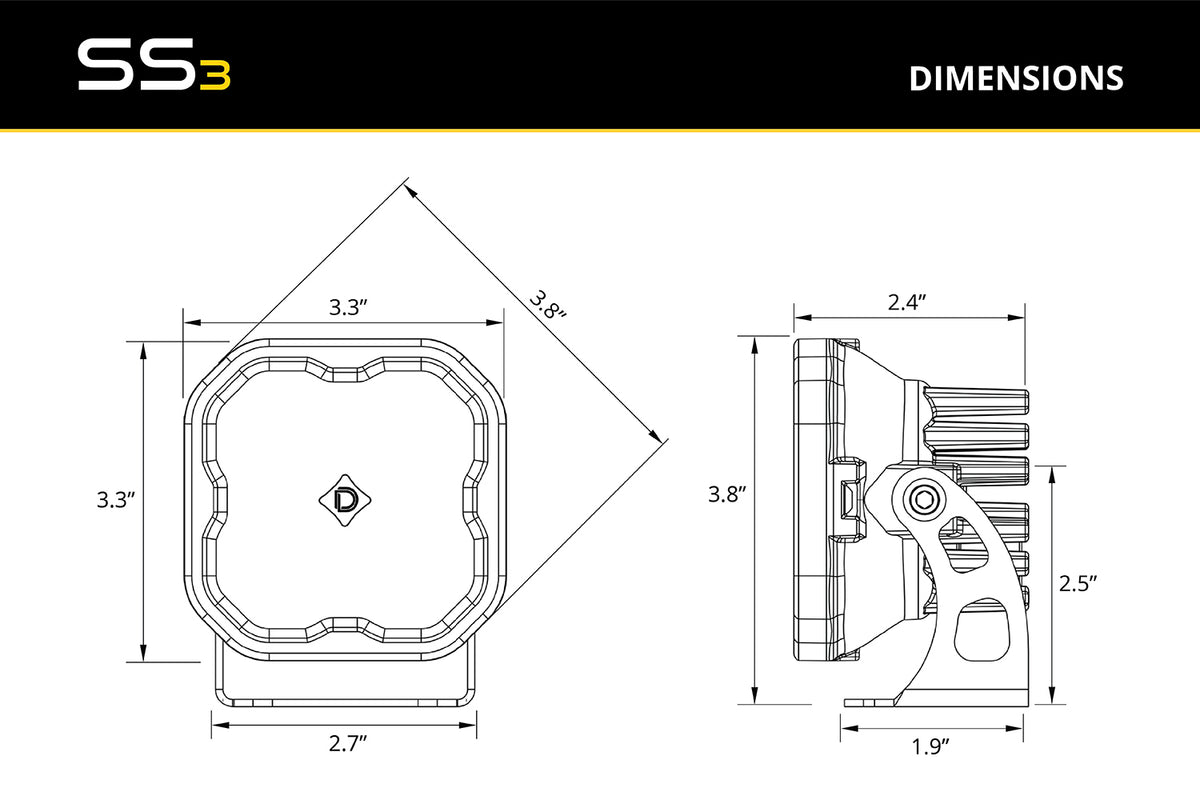

| Pod Size | 3 in (76 mm) class |
| Polarity | Polarity specific |
| Power Level | Pro |
| Product Weight | 3.1 lb (1.41 kg) |
| Raw Lumens | 5,796 lm per pod |
| Shipping Dimensions | 14 x 11 x 4 in (356 x 279 x 102 mm) |
| Shipping Weight | 5.25 lb (2.38 kg) |
| Warranty | Limited Lifetime |
| Watts | 36 W main beam, 0.4 W backlight, per pod |
| 2021–2025 Ford Bronco |
| Product Condition | NEW |
