(888) 723-0041Diode Dynamics Stage Series C2 2.0 Sport Backlit LED Ditch Light Kit for 2021-2026 Ford F-150, White Combo/Driving
Part #: DD7365
Diode Dynamics
Description
Diode Dynamics C2 2.0 Sport Backlit LED Ditch Light Kit for 2021-2026 Ford F-150 lights the edges of the trail your headlights never reach. Mounted at the rear corners of the hood, the pair aims out past the fenders to pick up tight turns, trail markers and wildlife stepping out from the shoulder. Each pod blends reach and spread in one combo/driving optic, so the pair earns its keep on a fire road and on an unlit county two-lane alike. Parked at camp or a trailhead, the amber backlight glows on its own as a soft marker and gives the truck a factory-custom look. Prefer warm yellow? Choose DD7366. More punch from the same C2 2.0 pods is the Pro kit, DD7367, and the larger SS3 pods start at DD7369.
Features
- Each bracket reuses factory fasteners at existing points on the truck, so there is no drilling into the cowl or fenders
- Low-profile brackets keep the pods tucked tight to the body for a clean, built-at-the-factory stance
| Amp Draw | 1.17 A main beam, 0.03 A backlight, per pod (at 12.8 V) |
| Backlight | Amber (ABL) |
| Beam Pattern | Combo/Driving, 55° x 20° |
| Bracket | Thick-gauge stainless steel, low profile |
| Color Temperature | 6000K (white) |
| Compliance | SAE J575 durability test; off-road use |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (with global materials) |
| Driver | Constant current |
| Illuminance | 340 lux at 32.8 ft (10 m), per pod |

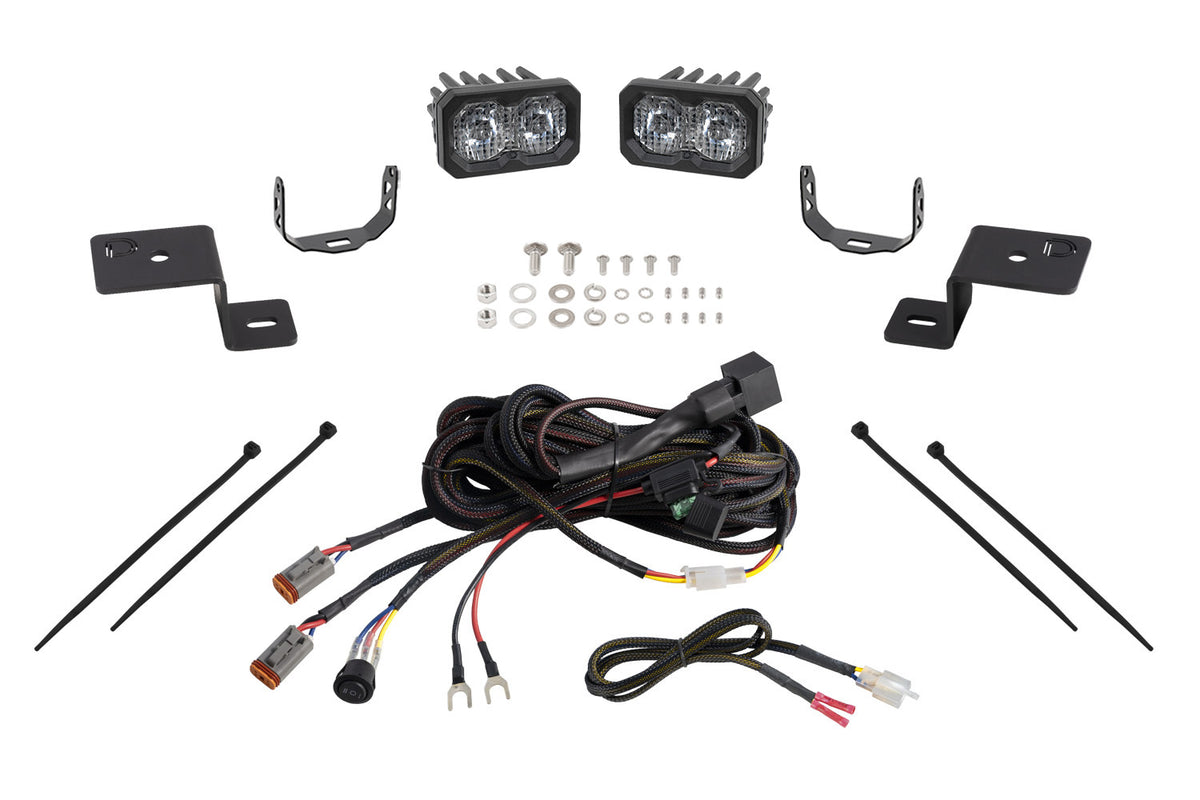

| In the Box | 2 x C2 2.0 (SSC2) Sport Standard pods, 2 ditch light brackets, 2 SSC2 mounting brackets, heavy-duty dual-output 4-pin harness, mounting hardware, mounting guide |
| Input Voltage | 9-30 V DC |
| Intensity | 34,000 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Lumileds automotive grade |
| Measured Lumens | 1,130 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | C2 2.0, 2 in (51 mm) class |
| Polarity | Polarity specific |
| Power Level | Sport |
| Product Weight | 3.5 lb (1.59 kg) |
| Raw Lumens | 1,186 lm per pod |
| Shipping Dimensions | 14 x 10 x 5 in (356 x 254 x 127 mm) |
| Shipping Weight | 5 lb (2.27 kg) |
| Warranty | Limited Lifetime |
| Watts | 15 W main beam, 0.38 W backlight, per pod |
| 2018–2024 Ford Expedition | |
| 2021–2026 Ford F-150 |
| Product Condition | NEW |
