(888) 723-0041Diode Dynamics Stage Series SS3 Sport Backlit LED Ditch Light Kit for 2021-2026 Ford F-150, White Combo/Driving
Part #: DD7369
Diode Dynamics
Description
Diode Dynamics SS3 Sport Backlit LED Ditch Light Kit for 2021-2026 Ford F-150 steps up to larger pods for broader light at the hood corners. The SS3 housing spreads its output into a wide, tall combo pattern, so it washes light across turnouts, gates and campsites rather than reaching far down the road. It is the pick when you care more about seeing what is beside the truck than what is a quarter mile ahead. Gold-toned light from these housings comes in DD7370, and Pro power arrives with DD7371.
Features
- Wide spread doubles as work light when backing to a trailer or hooking up gear in the dark
| Amp Draw | 1.1 A per pod (at 13.2 V) |
| Backlight | Amber (ABL) |
| Beam Pattern | Combo/Driving, 80° x 30° |
| Bracket | Thick-gauge stainless steel, low profile |
| Color Temperature | 6000K (white) |
| Compliance | SAE J575 durability test; off-road use |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (with global materials) |
| Driver | Constant current |
| Hood Clearance | Does not interfere with raising or lowering the hood |
| Illuminance | 91 lux at 32.8 ft (10 m), per pod |

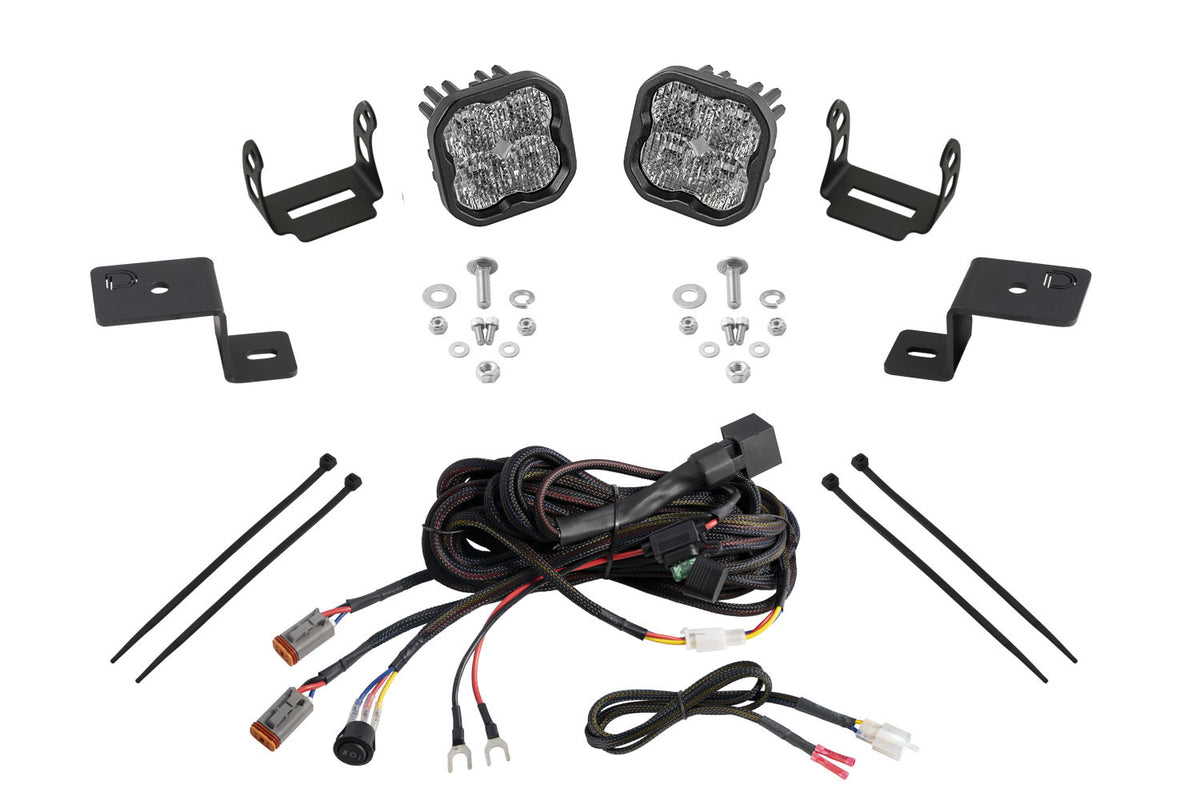

| In the Box | 2 x SS3 Sport Standard pods, 2 ditch light brackets, 2 SS3 pod mounting brackets, heavy-duty dual-output 4-pin harness, mounting hardware, mounting guide |
| Input Voltage | 9-16 V DC |
| Installation | Bolts to existing mounting points with factory hardware; no cutting or drilling |
| Intensity | 9,100 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Lumileds Luxeon Z ES |
| Measured Lumens | 1,520 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 3 in (76 mm) class |
| Polarity | Polarity specific |
| Power Level | Sport |
| Product Weight | 4 lb (1.81 kg) |
| Raw Lumens | 2,262 lm per pod |
| Shipping Dimensions | 14 x 10 x 5 in (356 x 254 x 127 mm) |
| Shipping Weight | 5.25 lb (2.38 kg) |
| Warranty | Limited Lifetime |
| Watts | 14.5 W per pod |
| 2021–2026 Ford F-150 |
| Product Condition | NEW |
