(888) 723-0041Diode Dynamics Stage Series SS3 Sport Backlit LED Ditch Light Kit for 2021-2026 Ford F-150, Yellow Combo/Driving
Part #: DD7370
Diode Dynamics
Description
Diode Dynamics SS3 Sport Yellow Backlit LED Ditch Light Kit for 2021-2026 Ford F-150 bathes the trail edges in wide, glare-cutting selective yellow. Selective yellow and a broad pattern make a good team in fog and blowing snow: the beam spreads low and wide where you need to find the road edge, and the warmer color keeps backscatter from washing out what you are trying to see. Bright white from this pod means ordering DD7369; high-output yellow lives in DD7372.
Features
- Warm tone stays easy on your own eyes during long winter drives off pavement
| Amp Draw | 1.1 A per pod (at 13.2 V) |
| Backlight | Amber (ABL) |
| Beam Pattern | Combo/Driving, 80° x 30° |
| Bracket | Thick-gauge stainless steel, low profile |
| Color Temperature | 3000K (selective yellow) |
| Compliance | SAE J575 durability test; off-road use |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (with global materials) |
| Driver | Constant current |
| Hood Clearance | Does not interfere with raising or lowering the hood |
| Illuminance | 65 lux at 32.8 ft (10 m), per pod |

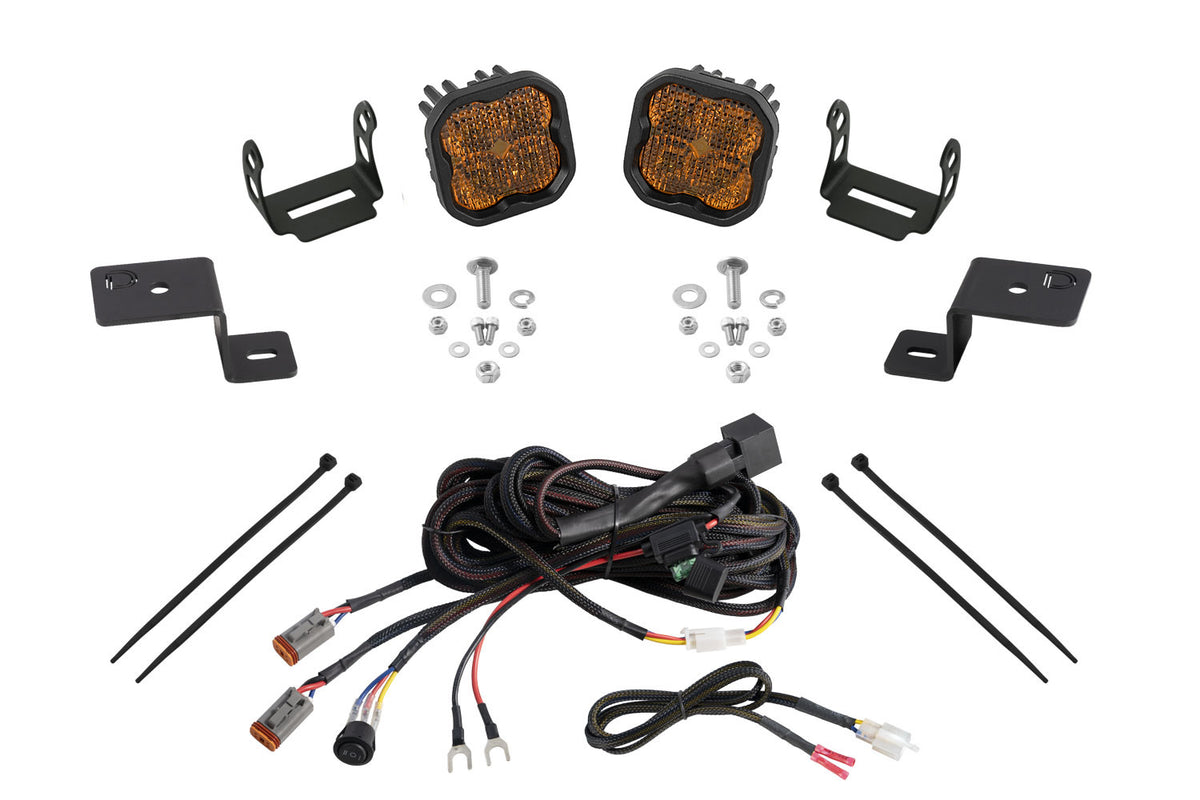

| In the Box | 2 x SS3 Sport Standard pods, 2 ditch light brackets, 2 SS3 pod mounting brackets, heavy-duty dual-output 4-pin harness, mounting hardware, mounting guide |
| Input Voltage | 9-16 V DC |
| Installation | Bolts to existing mounting points with factory hardware; no cutting or drilling |
| Intensity | 6,550 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Lumileds Luxeon Z ES |
| Measured Lumens | 1,300 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 3 in (76 mm) class |
| Polarity | Polarity specific |
| Power Level | Sport |
| Product Weight | 4 lb (1.81 kg) |
| Raw Lumens | 2,262 lm per pod |
| Shipping Dimensions | 14 x 10 x 5 in (356 x 254 x 127 mm) |
| Shipping Weight | 5.25 lb (2.38 kg) |
| Warranty | Limited Lifetime |
| Watts | 14.5 W per pod |
| 2018–2024 Ford Expedition | |
| 2021–2026 Ford F-150 |
| Product Condition | NEW |
