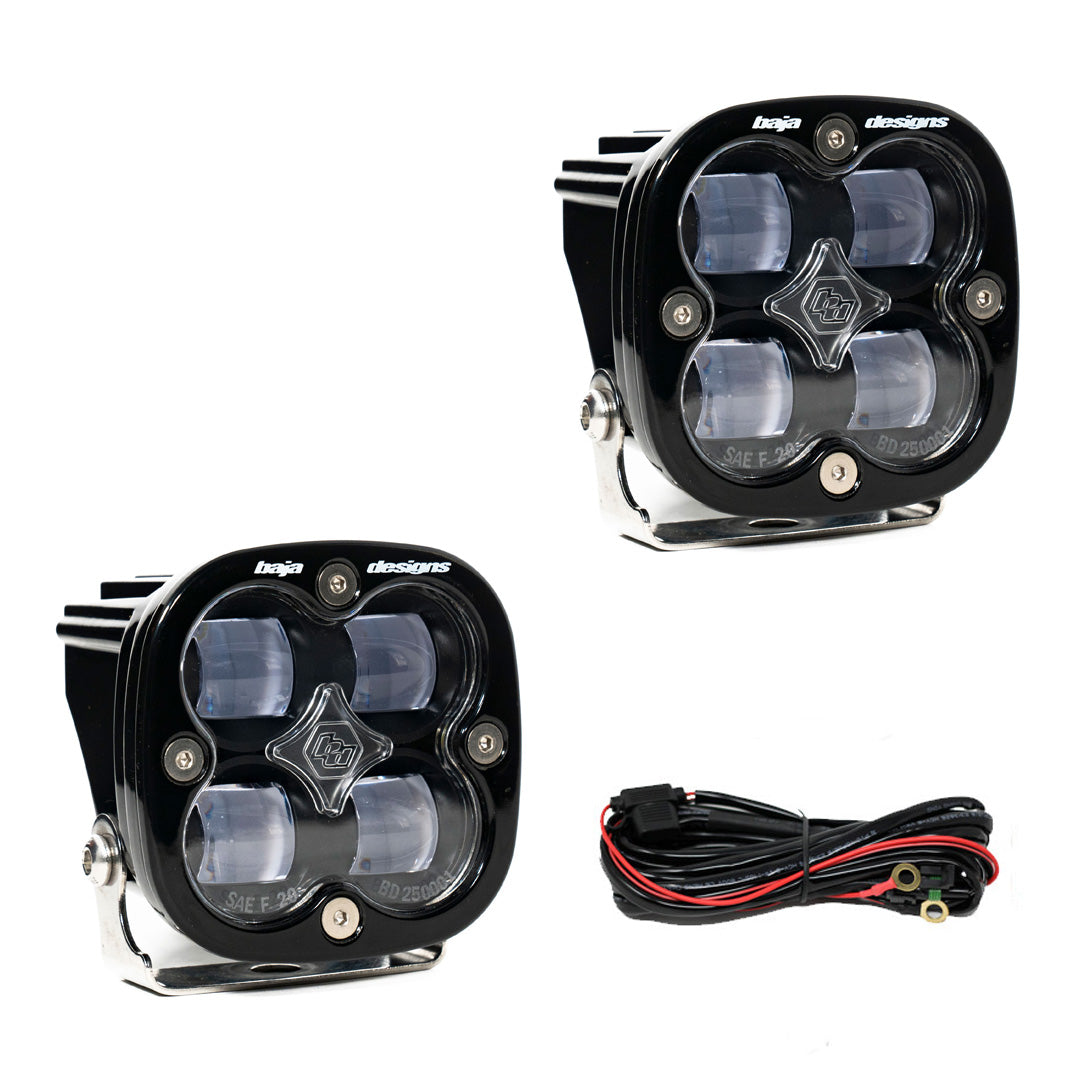

Baja Designs Squadron SAE LED Fog Light Pod Pair, Clear

Part #: 257801 | 257811

Baja Designs
$35595

Universal fit, sold as a pair. Mount each light upright: the fog pattern is set for that position, so call Baja Designs before mounting one sideways or upside down. Street legal as an auxiliary fog light; follow your state's rules on aiming and when fog lights may be on.

Select Option 1:
Select Lens Color:
Find your Fit
Universal Fit Note: Check product details - this product may require modification

Description

Baja Designs Squadron SAE LED fog light pod pair gives your truck, Jeep or SUV a fog beam that keeps working in rain, dust and fog. Most factory fog lamps throw a weak, scattered glow that bounces off falling rain and lights up the air in front of you. These pods lay a wide, flat sheet of light low across the pavement and out to the shoulders, under a crisp top edge that keeps the glare out of oncoming drivers' eyes and off the fog itself. The compact cube body tucks into a bumper opening or a grille without looking like an add-on, so the pair suits a daily-driven truck as well as a trail rig. Pick the clear lens for bright, natural light, or Baja Amber for nights of heavy rain, snow and dust, when warmer light is easier on the eyes. Want them in the factory fog pockets? Baja Designs builds fog pocket kits around this light: part 447616 for the 2019-2023 Ford Ranger and 2021-2025 Bronco with the plastic bumper, and part 447618 for the 2015-2020 F-150 and 2017-2022 Super Duty (amber version part 447718).

Features

  • Square body drops into Baja Designs' optional flush mount bezel for a clean in-bumper look, or an angled bezel when the opening faces down
  • Optional snap-on rock guards and colored covers protect the lenses from gravel on washboard roads
  • Optional splitter harnesses add more lights to the same switch later, up to three on one circuit
  • An optional upfitter harness ties the pair into factory upfitter switches on trucks that have them
  • Security bolt kits are offered to keep the pods on the truck while it sits parked at the trailhead
Amp Draw 2.1 A per light
Average Rated Life 49,930 hours
Beam Pattern SAE fog
Bezel Powder-coated cast aluminum
Country of Origin Made in USA
Durability Exceeds MIL-STD-810G military-standard testing
Housing Black, hard-anodized and powder-coated cast aluminum
Impact Resistance IK10
IP Rating IP69K; waterproof to 9 ft (2.7 m) and pressure washable
LEDs 4 Cree LEDs per light
Lens Clear hard-coated polycarbonate
Light Dimensions (L x H x D) 3.07 x 3.07 x 2.77 in (78 x 78 x 70 mm) per light
Light Output 2,420 lumens per light
Optics Aspheric projector
Overvoltage Protection Built-in
Package Dimensions 7.00 x 7.00 x 5.00 in (178 x 178 x 127 mm)
Peak Intensity Up to 15,800 candela per light
SAE Compliance J583 front fog lamp
Shipping Weight 3 lb (1.4 kg)
Warranty Limited lifetime; repair by return to Baja Designs
Watts 29 W per light
Weight 0.75 lb (0.3 kg) per light
What's Included 2 Squadron SAE lights, wiring harness, stainless steel mounting hardware
