(888) 723-0041Timbren Front Active Off-Road Bumpstops for Tacoma, Tundra, 4Runner & Land Cruiser
Part #: ABSTOF
Timbren
Description
Timbren Active Off-Road Bumpstops replace the front bump stops on 4WD Toyota Tacoma, Tundra, 4Runner, and Land Cruiser models with a progressive cushion. Independent front suspension takes the first hit on every rock, rut, and whoop. When the front end runs out of travel, the factory stop meets it with a jolt you feel through the steering wheel and the seat, and that impact goes straight into the front suspension. Active Off-Road Bumpstops change how that moment feels. The suspension settles into the stop and eases back out instead of slamming and kicking, so the front end stays composed and the truck tracks where you point it. Your suspension keeps its full travel; you only feel the difference when you need it most. Timbren recommends running front and rear kits together for the best result on rough terrain. Installs at the factory bump stop location with no drilling. Fits 4WD Toyota Tacoma 2005-2023, Tundra 2000-2026, 4Runner 1990-2024, and FJ Cruiser 2007-2014; Sequoia 2023-2026 (2WD and 4WD); Land Cruiser 100, 200, and 250 Series; Lexus GX470, GX460, GX550, LX470, and LX570.
Features
- Patented Aeon® hollow rubber spring replaces the factory front bump stop on Toyota and Lexus trucks
- Natural rubber softens front-end bottom-outs with no air lines or hydraulic fluid involved
- One kit, no upkeep: nothing to adjust, recharge, or rebuild, unlike hydraulic bump stops
- Mounts in the factory bump stop holes with the supplied fasteners, no drilling
- Fits stock trucks and many lifted Toyota builds
- Locknuts included in case a seized factory nut is damaged on removal
- Helps keep oversized front tires away from the fender liners when the front end compresses
| Amount of Deflection | 0.75 in (19 mm) |
| Bump Load Capacity | 1,800 lb (816 kg) |
| Country of Origin | Made in Canada |
| Finish | Black |
| Overall Kit Height | 2.00 in (51 mm) |
| Position | Front |
| Product Line | Active Off-Road Bumpstops |
| Shipping Weight | 3 lb (1.4 kg) |
| Spring Material | Natural rubber |
| Spring Rate | Progressive |
| Spring Type | Aeon® hollow rubber spring |
| Total Deflected (Compressed) Height | 1.25 in (32 mm) |
| Warranty | Lifetime, for the life of the original vehicle (material and workmanship) |

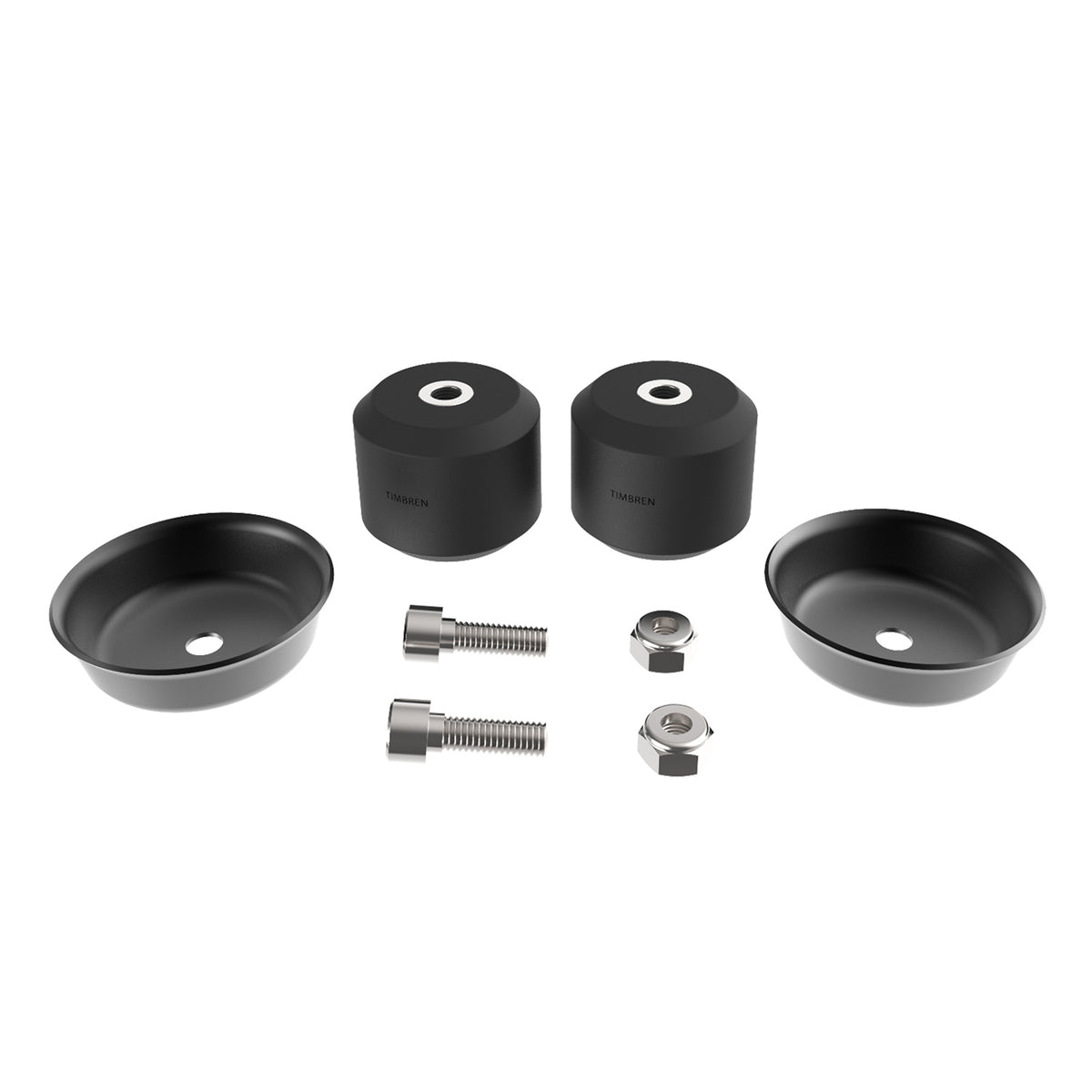

| What's Included | 2 Aeon® rubber springs, 2 steel cups, all mounting hardware |
| 1990–2024 Toyota 4Runner | Position: Front · 4WD only |
| 1998–2007 Lexus LX470 | Position: Front · 4WD |
| 1998–2021 Toyota Land Cruiser | Position: Front · 100 / 200 Series |
| 2000–2026 Toyota Tundra | Position: Front · 4WD only |
| 2003–2009 Lexus GX470 | Position: Front · 4WD |
| 2005–2023 Toyota Tacoma | Position: Front · 4WD only |
| 2007–2014 Toyota FJ Cruiser | Position: Front · 4WD |
| 2008–2021 Lexus LX570 | Position: Front · 4WD |
| 2010–2023 Lexus GX460 | Position: Front · 4WD |
| 2023–2026 Toyota Sequoia | Position: Front · 2WD and 4WD |
| 2024–2026 Lexus GX550 | Position: Front · 4WD |
| 2024–2026 Toyota Land Cruiser | Position: Front · 250 Series |
* Disclaimer: Product information on this page is supplied by the manufacturer and may change without notice. Many parts fit specific vehicle makes, models, years and trims, so please confirm fitment before you buy. We work hard to present the most accurate data available, but Parts2Drive cannot guarantee the completeness or accuracy of manufacturer-provided content and is not responsible or liable for errors or omissions in it.
