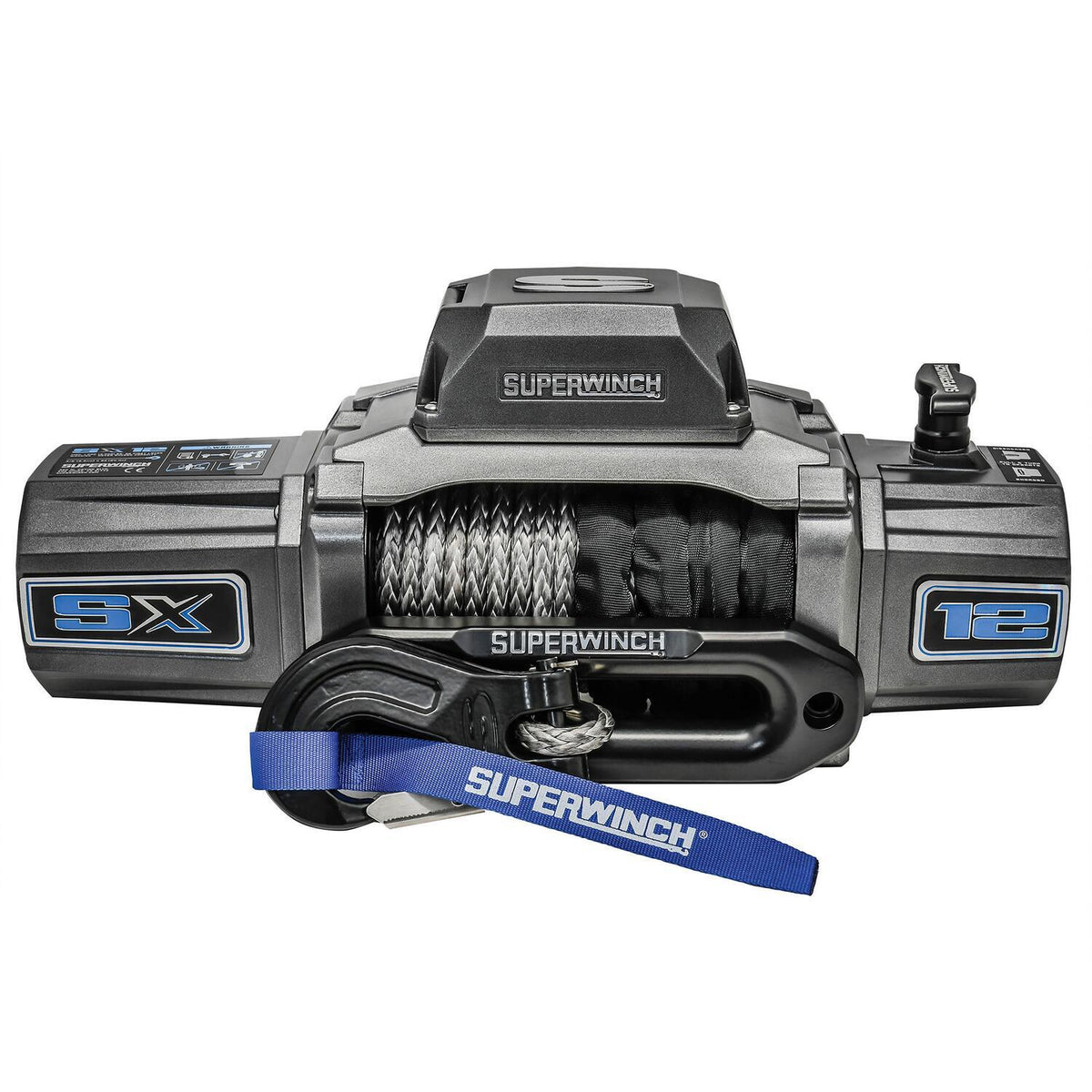

(888) 723-0041Superwinch SX12SR 12,000 lb 12V Winch with Synthetic Rope, Graphite
Part #: 1712201
Superwinch
Description
The Superwinch SX12SR is a 12,000 lb synthetic rope winch built for full-size trucks and heavy overland rigs that need more pull. Heavy rigs put real weight on the end of the line, and today's front ends are packed tight with sensors, cameras, and styled bumpers. The SX12SR is engineered to live there without a fight. Its metallic graphite powder coat looks right at home behind a factory grille, and it is built to shrug off the mud, water, and dust that come with real trail use.
That extra margin matters most when things go wrong: a buried axle, a steep climb out, a recovery after dark. A patented built-in light illuminates the rope as it spools on, so you see every wrap go on even when the sun is long gone.
If your truck is too heavy for a ten-thousand-pound winch to work comfortably, the SX12SR gives you the headroom with every SX feature on board.
Features
- Relocatable die-cast aluminum control box mounts away from the winch for a cleaner install
- Wireless handheld remote included
- Wired remote with built-in rechargeable LED flashlight that charges while plugged into the winch
- Sealed motor built for wet, muddy conditions
- Automatic mechanical brake holds a full rated load when you stop winching
- Clockable planetary gearbox can be positioned to suit your bumper
- Ergonomic pull-and-turn free-spool clutch handle
- UV-coated synthetic rope
- Heavy-duty clevis pinned hook with safety latch
- Aluminum hawse fairlead
- Fully welded steel drum
- Mounting hardware included
| Brake | Automatic mechanical, 100% full-load holding |
| Clutch | Pull-and-turn free-spool |
| Color | Graphite |
| Control Box | Relocatable die-cast aluminum, up to 18" (457 mm) from the winch |
| Drum | Fully welded steel, 2.5" (64 mm) diameter |
| Fairlead | Aluminum hawse |
| Finish | Metallic graphite powder coat |
| Gear Ratio | 231:1 |
| Gear Train | 3-stage planetary, clockable |
| Hook | Heavy-duty clevis pinned, latched |
| IP Rating | IP68 waterproof and dustproof |
| Line Pull by Layer | Layer 1: 12,000 lb (5,443 kg); Layer 2: 9,535 lb (4,325 kg); Layer 3: 7,910 lb (3,588 kg); Layer 4: 6,759 lb (3,066 kg) |
| Line Speed & Amps @ 0 lb | 23.4 ft/min (7.1 m/min), 68 A |
| Line Speed & Amps @ 10,000 lb (4,536 kg) | 4.8 ft/min (1.5 m/min), 335 A |
| Line Speed & Amps @ 12,000 lb (5,443 kg) | 3.7 ft/min (1.1 m/min), 379 A |
| Line Speed & Amps @ 2,000 lb (907 kg) | 11.1 ft/min (3.4 m/min), 160 A |
| Line Speed & Amps @ 4,000 lb (1,814 kg) | 8.5 ft/min (2.6 m/min), 204 A |
| Line Speed & Amps @ 6,000 lb (2,722 kg) | 7.6 ft/min (2.3 m/min), 248 A |
| Line Speed & Amps @ 8,000 lb (3,629 kg) | 6.2 ft/min (1.9 m/min), 291 A |
| Motor | 6.0 HP sealed |
| Mounting Bolt Pattern | 10" x 4.5" (254 x 114.3 mm) |
| Product Dimensions | 22.04" L x 6.3" W x 9.67" H (560 x 160 x 246 mm) |
| Rated Line Pull | 12,000 lb (5,443 kg) |
| Remote Control | Wireless handheld + 12 ft (3.7 m) wired with rechargeable LED flashlight |
| Rope Material | Synthetic, UV coated |
| Rope Size | 3/8" x 80 ft (9.5 mm x 24.4 m) |
| Series | SX |
| Shipping Weight | 62 lb (28.1 kg) |
| Task Lighting | Patented drum light (U.S. Patent 10,633,229) |
| Voltage | 12V DC |
| Warranty | Limited Lifetime Mechanical / 7 Year Limited Electrical |
