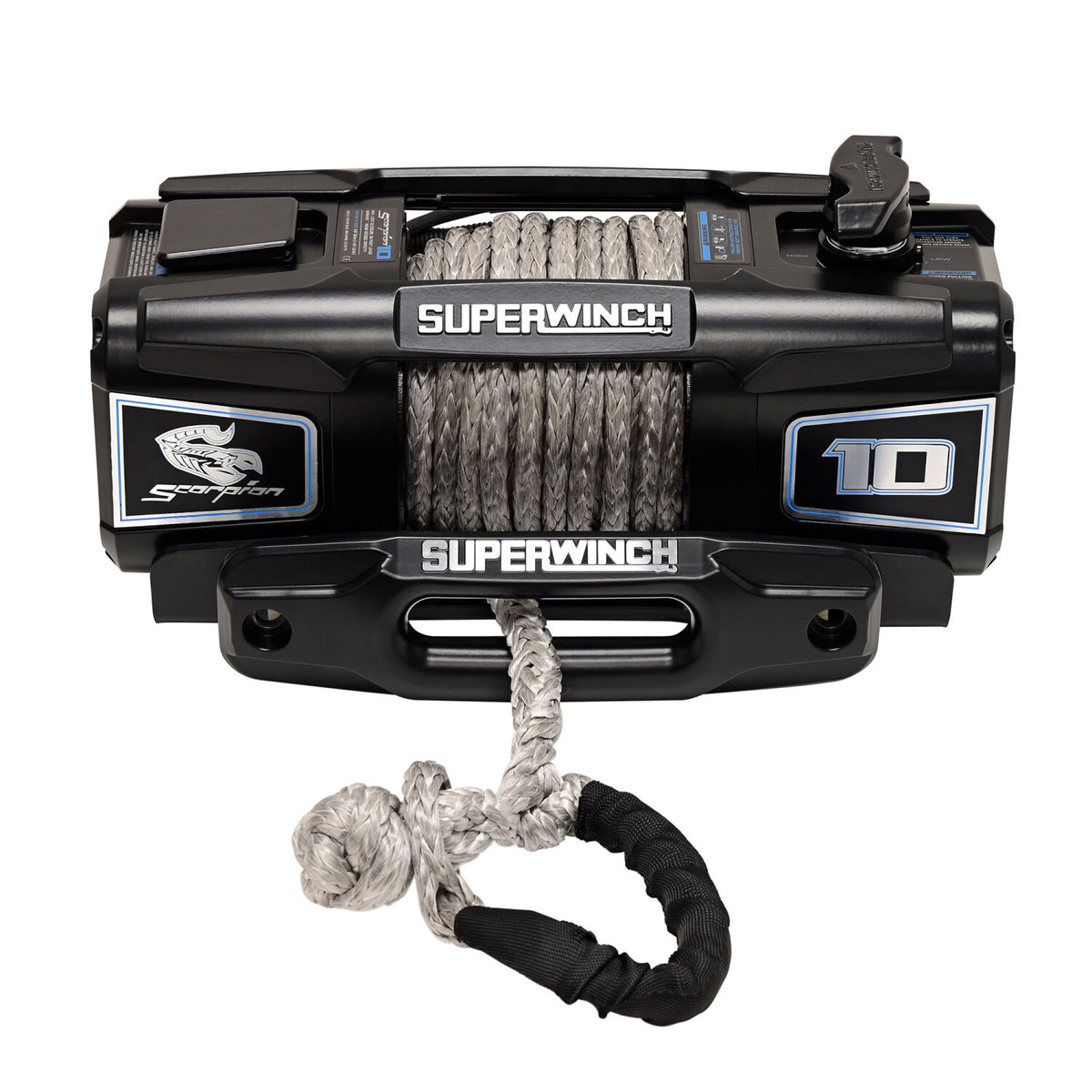

(888) 723-0041Superwinch Scorpion 10SR 10,000 lb 12V Winch with Synthetic Rope
Part #: 1155401
Superwinch
Description
The Superwinch Scorpion 10SR is a 10,000 lb synthetic rope winch sized to fit the tight bumpers where a traditional full-size winch won't. Today's trucks and SUVs leave little room up front, and their suspension is tuned for a stock curb weight. The Scorpion answers with full-size pulling power in a body that is noticeably shorter and lighter than a conventional winch of the same rating, so your front springs carry less and your bumper keeps a clean, low profile.
It is built for real recoveries, not showroom duty. A patented drum light puts light right on the spool and fairlead, so a pull after dark feels as controlled as one at noon. It runs on a single vehicle battery, so there is no second battery or rewiring project standing between you and your first recovery.
For trail rigs and overland builds where every pound on the front axle counts, the Scorpion 10SR is the compact winch that doesn't ask you to give up capacity.
Features
- Internal control box: no separate contactor pack to relocate, so radiator airflow and front camera views stay clear
- Permanent magnet motor with dynamic braking stops the drum the moment you release the switch, even with no load on the line
- Automatic mechanical brake holds a full rated load in place when you stop pulling
- Dual-range planetary gearbox: low range for maximum pull, high range for fast line retrieval on light loads
- Clockable gearbox mounts in four orientations to suit your bumper and mounting space
- Pull-and-turn free-spool clutch handles range changes and free-spooling without binding
- Smart Overload Interrupter (OLI) pauses the winch if the load exceeds its rating or the motor runs hot
- Synthetic rope terminates in an integrated soft shackle, so there is no metal hook anywhere in the line
- Wired remote with a built-in rechargeable flashlight that charges while plugged into the winch
- Wireless remote with a MOLLE loop clip rides on your vest, pack, or seat back
- Adapter plate lets the compact winch bolt to the industry-standard winch plate pattern
- Fully welded steel drum
| Amp Draw (Max) | 258 A |
| Brake | Automatic mechanical, 100% full-load holding |
| Clutch | Pull-and-turn free-spool |
| Color | Black |
| Control Box | Internal (integrated) |
| Drum | Fully welded steel |
| Fairlead | Aluminum hawse |
| Finish | Powder coat |
| Gear Ratio | 437:1 (low) / 156:1 (high) |
| Gear Train | 4-stage planetary, dual-range |
| Hook | Integrated soft shackle |
| IP Rating | IP68 waterproof and dustproof |
| Motor | 1.9 HP permanent magnet |
| Mounting Bolt Pattern | 6.38" x 4.50" (162 x 114 mm) native; 10.00" x 4.50" (254 x 114 mm) with included adapter plate |
| Product Dimensions | 16.50" L x 6.81" W x 6.75" H (419 x 173 x 171 mm); clutch handle adds 0.92" (23 mm) |
| Rated Line Pull | 10,000 lb (4,536 kg) |
| Remote Control | Wireless handheld + 12 ft (3.7 m) wired |
| Rope Material | Synthetic UHMWPE |
| Rope Size | 3/8" x 54 ft (9.5 mm x 16.4 m) |
| Series | Scorpion |
| Temperature Range (Tested) | -40°F to 125°F (-40°C to 52°C) |
| Voltage | 12V DC |
| Warranty | Limited Lifetime Mechanical / 7 Year Limited Electrical |
| Weight | 49 lb (22.2 kg) |
| Wireless Remote Battery | CR2450 |
