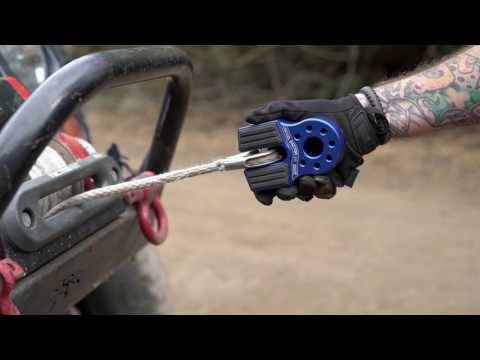

Flat Splicer 3/8-1/2" Synthetic Rope Splice-on Shackle Mount – video 2

Ask an expert

We can help you find the part you need

(888) 723-0041

Mon–Fri: 8:30 AM–5:00 PM ET

Sat: 8:30 AM–12:00 PM ET

Sunday: Closed

Email us (24/7)

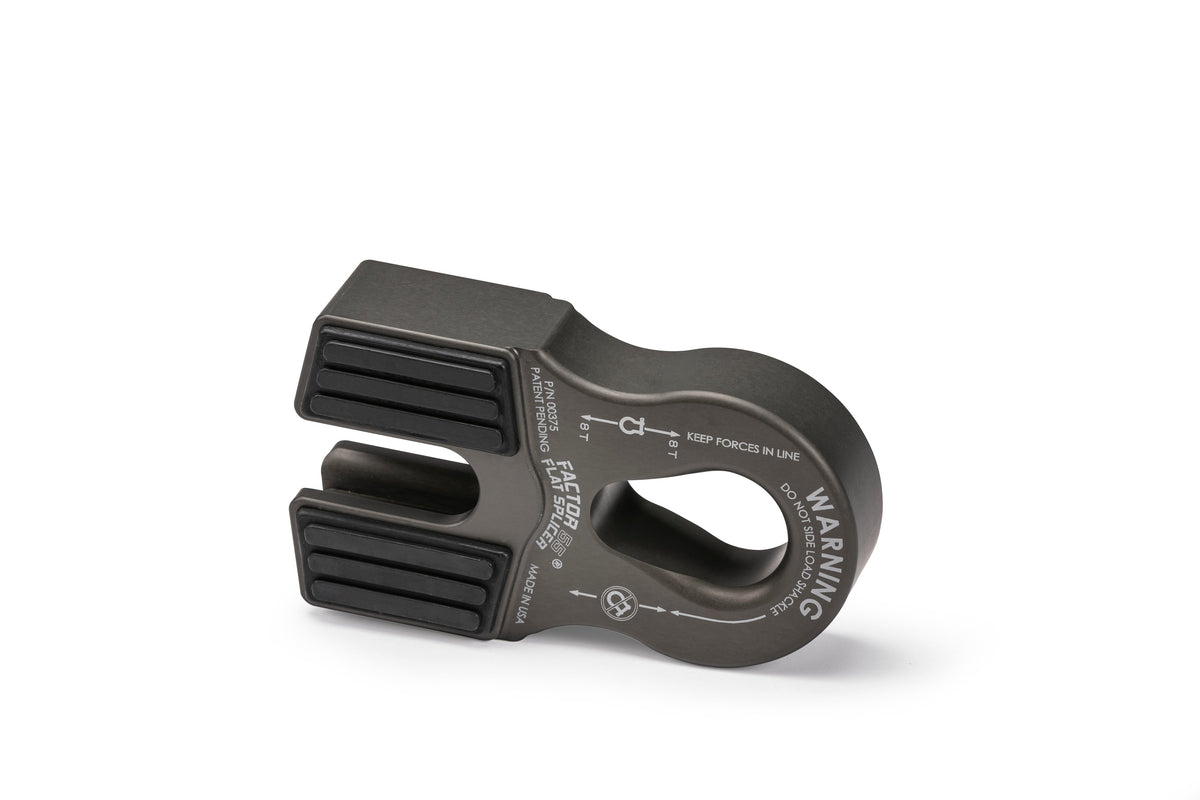

Flat Splicer 3/8-1/2" Synthetic Rope Splice-on Shackle Mount

Part #: 00375-01 | 00375-02 | 00375-03 | 00375-04 | 00375-05 | 00375-06 | 00375-07 | 00375-08

Factor 55

^$115⁰⁰

Save 20% Retail: $143.75

The Flat Splicer is the world's first splice on folding winch rope shackle mount thimble. Integrated EPDM rubber pads for fairlead protection, connects to both the pin and bow end of common 3/4" screw pin shackles.

Select Color:

Red 00375-01 1 in stock Blue

Blue 00375-02 43 in stock Yellow

Yellow 00375-03 25 in stock Black

Black 00375-04 2 in stock Silver

Silver 00375-05 32 in stock Gray

Gray 00375-06 11 in stock Orange

Orange 00375-07 45 in stock Green

Green 00375-08 38 in stock

This part has compatibility notesPlease review the manufacturer’s compatibility notes before purchasing. See compatibility notes ↓

Find your Fit

Universal Fit Note: Check product details - this product may require modification

Description

The Flat Splicer is the world’s first splice on folding winch rope shackle mount thimble. Finished in a durable Mil-Spec hard anodized surface, the Flat Splicer can be folded flat against winch fairleads minimizing vehicle frontal protrusion. At a mere 1.75 inches thick, and equipped with integrated EPDM rubber pads, the Flat Splicer can accommodate the pin and bow sections of common 3/4 shackles as well as the pin ends of larger 7/8 shackles. Note how the spliced rope can exit the middle of the part and be routed 90 degrees along the inner radius, and back towards the winch. This innovative design allows the Flat Splicer to be stowed with the groove side facing towards the winch, thus eliminating all exposed winch rope from damaging UV light and impact/abrasion. So for all of you off-roaders that are looking for a splice-on rope thimble that completely protects the end of your winch rope without compromising your vehicle approach angle, the Flat Splicer is the product for you. NOTE: Unlike the Factor 55 ProLink and Flatlink shackle mount products, The Flat Splicer requires synthetic rope splicing knowledge. We recommend either the locking Brummel Splice or Long Bury Splice, see our splicing guide below.

Made in USA Patent Pending

WLL: Due to the splice-on design, the Working Load Limit (WLL) is based on the rope diameter used. Each Splice-On Shackle Mount exceeds minimum bend radius requirements to provide full breaking strengths of synthetic winch lines used.

Features

Replace conventional winch hooks with a safer more secure shackle/D-ring
The world’s first foldable splice-on winch rope shackle mount
Unique machined rope path provides complete rope protection from impact & UV
Lightweight – Precision CNC machined 6000 series Military Grade Aluminum
For synthetic winch rope only
Integrated EPDM rubber pads for fairlead protection
Connects to both the pin and bow end of common ¾” screw pin shackles
Connects to the pin ends of 7/8” and 1” screw pin shackles
For synthetic winch rope diameters up to ½”
Available in Military Spec Hard Anodizing (Mil-A-8625 F Type III) and powder coated finishes
Weight: 20oz
MADE IN THE USA

For synthetic winch rope only
Lightweight — Precision CNC machined 6000 series Military Grade Aluminum
Due to the splice-on design, the Working Load Limit (WLL) is based on the rope diameter used. Each Splice-On Shackle Mount exceeds minimum bend radius requirements to provide full breaking strengths of synthetic winch lines used
Unique machined rope path provides complete rope protection
Engineered, Tested, and Made in USA — Patent Pending
Replace conventional winch hooks with a safer more secure shackle/D-ring

For synthetic winch rope only
Lightweight — Precision CNC machined 6000 series Military Grade Aluminum
Due to the splice-on design, the Working Load Limit (WLL) is based on the rope diameter used. Each Splice-On Shackle Mount exceeds minimum bend radius requirements to provide full breaking strengths of synthetic winch lines used
Unique machined rope path provides complete rope protection
Engineered, Tested, and Made in USA — Patent Pending
Replace conventional winch hooks with a safer more secure shackle/D-ring

Compatibility

Manufacturer compatibility notes — please review before purchasing.

Synthetic rope up to 1/2", synthetic only (no steel cable), connects to 3/4" / 7/8" / 1" screw-pin shackles, requires splicing knowledge.
