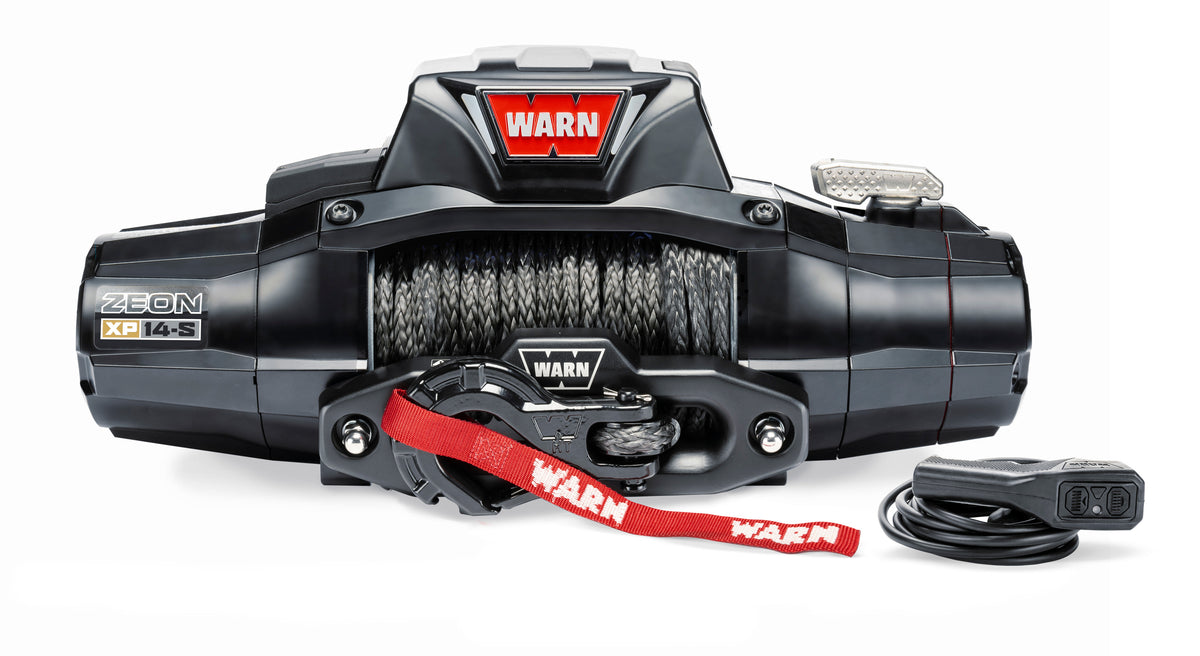

ZEON XP 14-S Winch

Part #: 110140

Warn
$2,84999
Save 15% Retail: $3,352.93

Requires a winch mount, winch carrier or winch-ready bumper, sold separately.

This Product:
Find your Fit
Universal Fit Note: Check product details - this product may require modification

Description

The WARN ZEON XP 14-S is a 14,000 lb synthetic rope winch for three-quarter-ton and one-ton trucks that need premium recovery performance. ZEON XP is WARN's top-of-the-line winch, built for owners who want to push a recovery further and know exactly what the winch is doing while they do it. It pairs WARN's best pulling performance with smarter control, so you can work the line with confidence when there is no room for guesswork. Every ZEON XP is designed, engineered and assembled by WARN in Clackamas, Oregon.

Features

  • Real-time feedback on motor temperature, load and vehicle battery condition while you winch
  • Dual controls: handheld corded remote plus built-in HUB Wireless Control
  • Remote-activated clutch with a manual backup for faster, easier free spooling
  • Dynamic drum and accent lighting changes color to show winch status
  • Waterproof construction rated against submersion and high-pressure spray
  • WARN Spydura Pro synthetic rope with heat-resistant inner wraps and an abrasion sleeve, paired with a large-radius black forged-aluminum hawse fairlead
Amp Draw (No Load) 66 A
Amp Draw (Rated Load) 458 A at 14,000 lb (6,350 kg)
Battery Leads 2 gauge, 72" (1.83 m)
Brake Automatic six-segment mechanical cone brake
Clutch Rotating ring gear, manual and remote activation
Drum Size 3.15" diameter x 9.0" length (80 mm x 229 mm)
Finish Satin-black powder coat
Gear Ratio 213:1
Gear Train 3-stage planetary
IP Rating IP68 / IP69K
Line Speed (No Load) 27 ft/min (8.2 m/min)
Line Speed (Rated Load) 2 ft/min (0.6 m/min) at 14,000 lb
Motor 12V DC series wound
Mounting Bolt Pattern 10.0" x 4.5" (254 mm x 114.3 mm), 4 bolts
Product Dimensions 23.9" L x 10.5" H x 7.1" W (607 x 267 x 180 mm)
Rated Line Pull 14,000 lb (6,350 kg), single line, first layer
Recommended Battery 650 CCA minimum
Rope 3/8" x 80 ft Spydura Pro synthetic (9.5 mm x 24.4 m)
Warranty Limited lifetime mechanical, 7 year electrical
Weight 70 lb (32 kg)
